K&F Falcon 9 CU.FT Front Loading Kiln

Code 7207

MAX TEMP – 1300°C

CAPACITY – 9 ft³ (256 Litres)

INTERNAL DIMENSIONS
(WIDTH X DEPTH X HEIGHT) – 460 X 610 X 910mm (18″ X 24″ X 36″)

EXTERNAL DIMENSIONS
(WIDTH X DEPTH X HEIGHT) – 715 X 1016 X 1600mm (28.25″ X 40″ X 63″)

WEIGHT – 310 kg

ELECTRICAL – 14.23 kw (80 amp)

OPTIONAL KILN FURNITURE SET

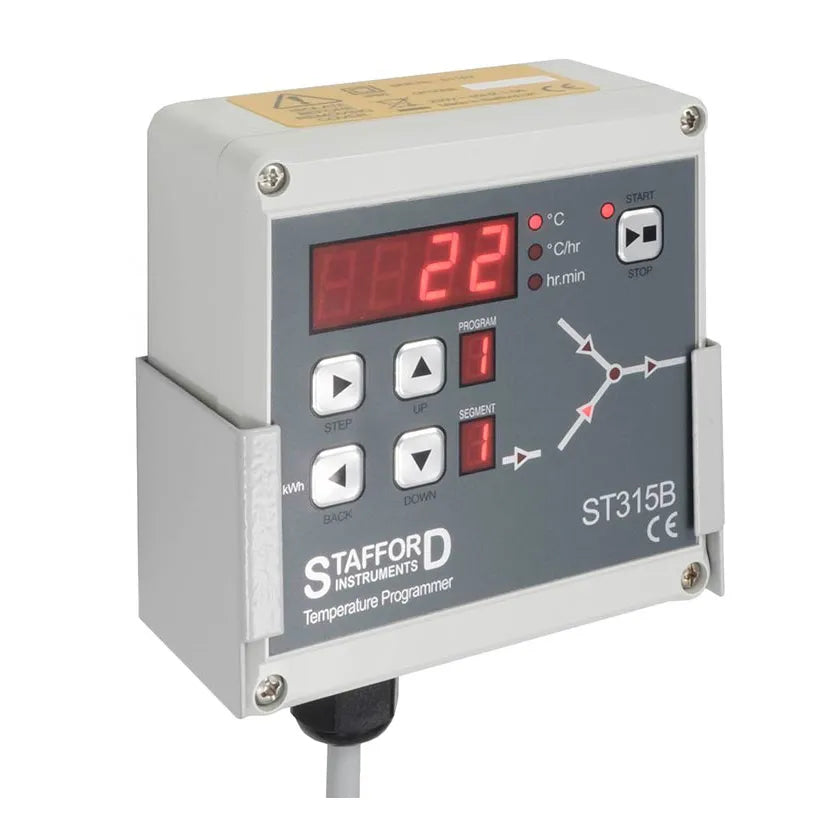

OPTIONAL CONTROLLER ST312B / ST315B

• Front loading for ease of placing ware
• Highly thermally efficient construction
• Free standing stove enamel paint finish
• High grade spiral wound elements fitted to sidewall and base
• Efficient low thermal mass brickwork
• Uk compliant electro mechanical door interlock system
• Over temperature kiln lining protection
• Ventilation cooling port
• Instrument socket to accept all controllers in our range
• Single phase / 3 Phase
• PLEASE NOTE – Optional Kiln Furniture Set & Controller (these are not included in kiln price – please see the selection options)

Photographs are for illustrative purposes only and may not be entirely exact to the product listed but close.
