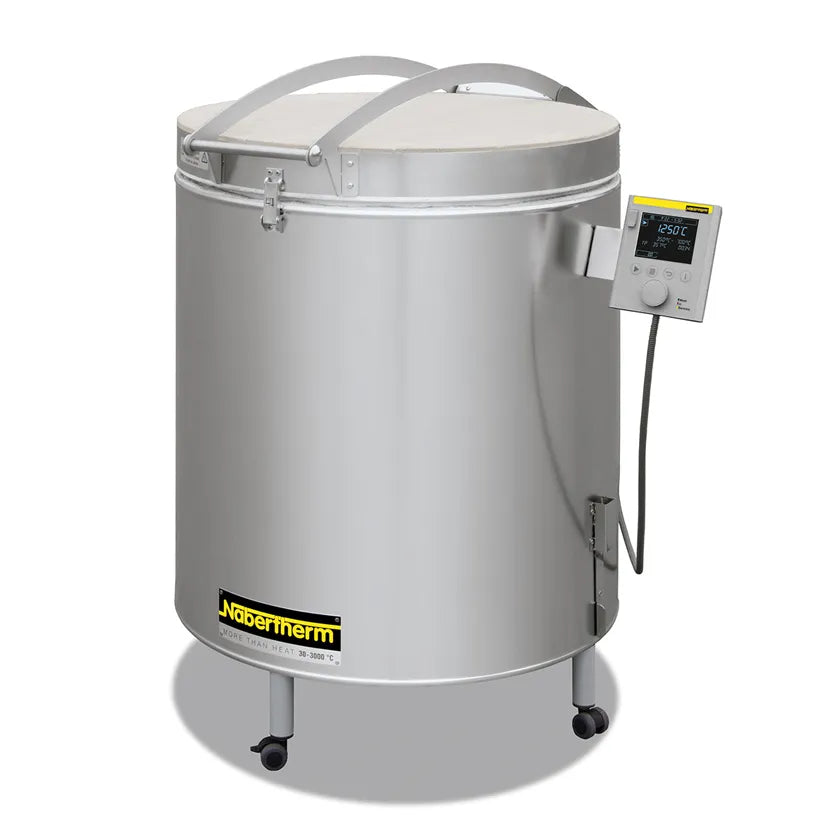

Nabertherm Top 190 6.5 CU.FT Top Loading Kiln

Code 7110

MAX TEMP – 1320°C

CAPACITY – 6.5 ft³ (184 Litres)

INTERNAL DIMENSIONS
(DIAMETER X HEIGHT) – 590 X 690 mm ( 23.2″ X 27.1″)

EXTERNAL DIMENSIONS
(DIAMETER X HEIGHT) – 1090 X 1150 mm ( 42.9″ X 45.2″)

WEIGHT – 146kg

ELECTRICAL – 11 kw / 3 phase

9 ELEMENTS

• Housing made of textured stainless steel
• Controller mounted on the right side of the kiln with removable holder for comfortable operation
• Multiple layers of insulation for low exterior temperatures
• Lightweight refractory bricks inside kiln chamber for clean firing results
• Lid with adjustable quick-release lock and padlock hasp
• Adjustable lid mechanism
• Long-life lid seal (brick on brick)
• Lid interlock safety switch
• Heating from all sides, elements embedded in grooves for protection
• Solid state relays provide for low-noise operation
• Rapid switching cycles result in precise temperature control
• Type S thermocouple
• Powerful gas dampers support lid opening
• Infinitely adjustable air inlet in opening in the kiln bottom for good ventilation and short cooling times
• Exhaust air outlet on kiln side
• Lockable castors for easy transport of kiln without the need for lifting
• Bottom heating for very good temperature uniformity
• Defined application within the constraints of the operating instructions
• NTLog for Nabertherm controller: recording of process data with USB-flash drive
• Wall-bracket for controller with 2.5 m connecting cable

– Optional Furniture Set Available

Strongly constructed for long life and low maintenance. The perfect kiln for hobby and work shop! Attractive design, low weight and good firing results are only a few of the advantages of our top loaders. Good choice for home applications as well as for small schools or colleges.

Photographs are for illustrative purposes only and may not be entirely exact to the product listed but close.
