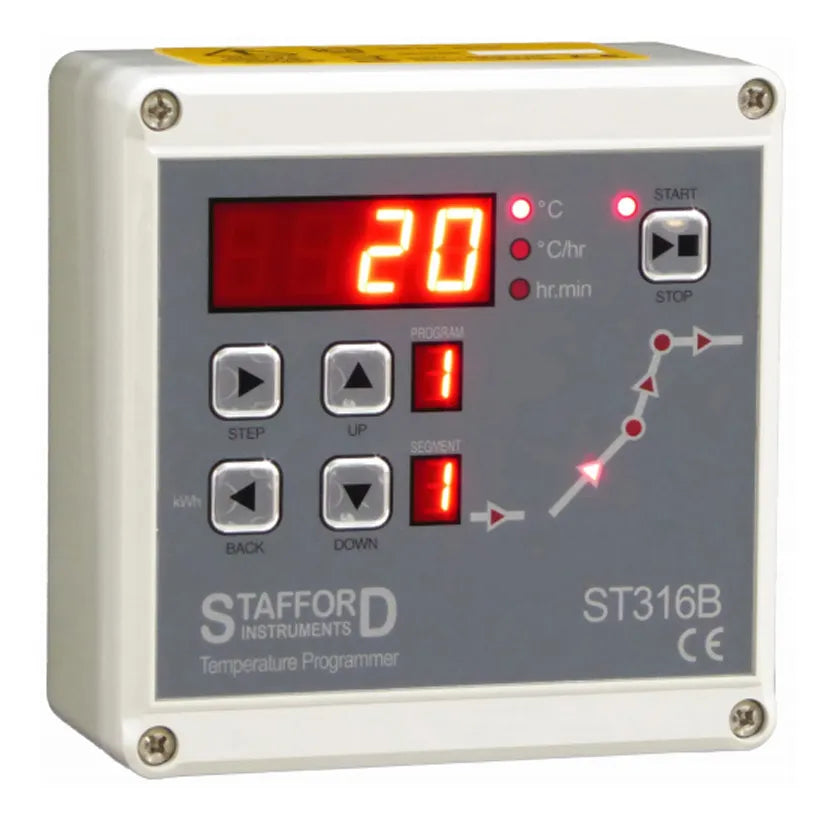

Stafford Controller ST316B

Code 7422

The ST316B is a 9-program controller designed for pottery, ceramics & glass firing. Each program can have from 1 to 9 segments. It is fully adjustable with a detailed 6-lamp mimic display & continuous display of program & segment numbers. Each segment comprises 2 ramps followed by a soak. Ramps can be heating or cooling. It executes a controlled ramp to temperature t1 then it executes another controlled ramp to temperature t2. It soaks at t2 for the required period then executes the next segment. The end of the program is marked by selecting ‘End’ while entering a ramp rate. Natural cooling then follows.

Features:

• 9 programs—each with up to 9 segments
• 2 controlled heating / cooling ramps + soak per segment
• Suitable for ceramics or glass use
• Soak times up to nearly 100 hours
• Ramp rates from 1 to 999°C/hour + full
• Programs can be reviewed or altered while firing
• Program Pause & Segment Advance facilities
• Keyboard lockable
• Delayed start facility – up to 4 days
• Power failure recovery
• Energy used display
• Standard alarm / safety relay with alarm buzzer
• Complete with wall mounting bracket and User Manuals
