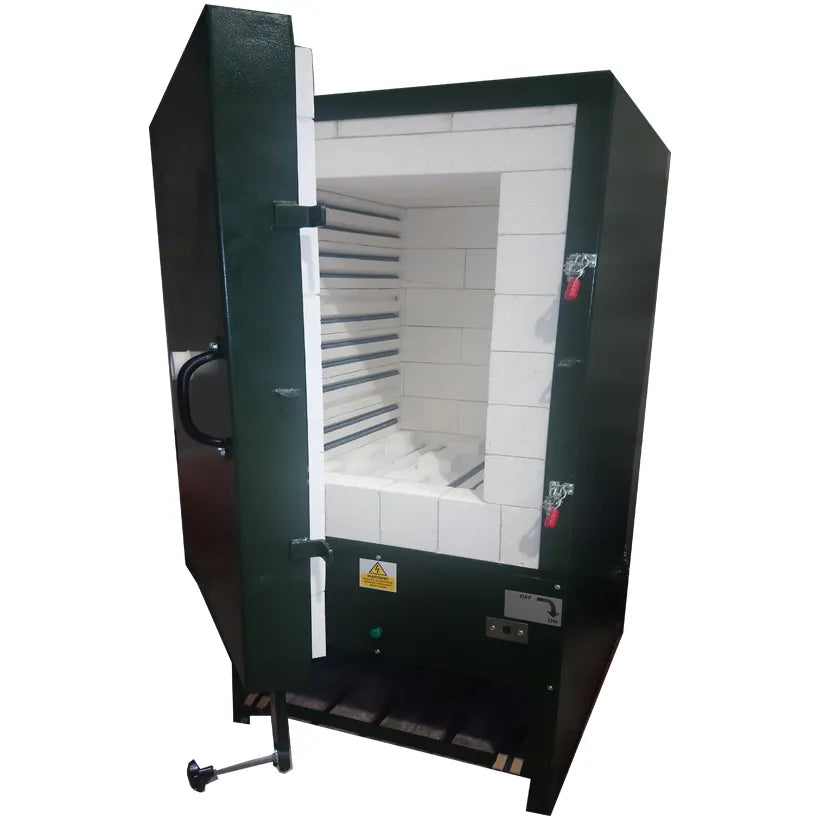

UC College Front Loading Kiln 6.75 CU.FT

Code 7217

MAX TEMP – 1300°C

CAPACITY – 6.75 ft³ (191 Litres)

INTERNAL DIMENSIONS
(WIDTH X DEPTH X HEIGHT) – 460 X 505 X 760mm (18″ X 20″ X 29.8″)

EXTERNAL DIMENSIONS
(WIDTH X DEPTH X HEIGHT) – 775X 990 X 1700mm (30.5″ X 39″ X 67″)

WEIGHT – 400 kg

ELECTRICAL – 12 kw 63A single phase or 32A 3 phase

OPTIONAL KILN FURNITURE SET

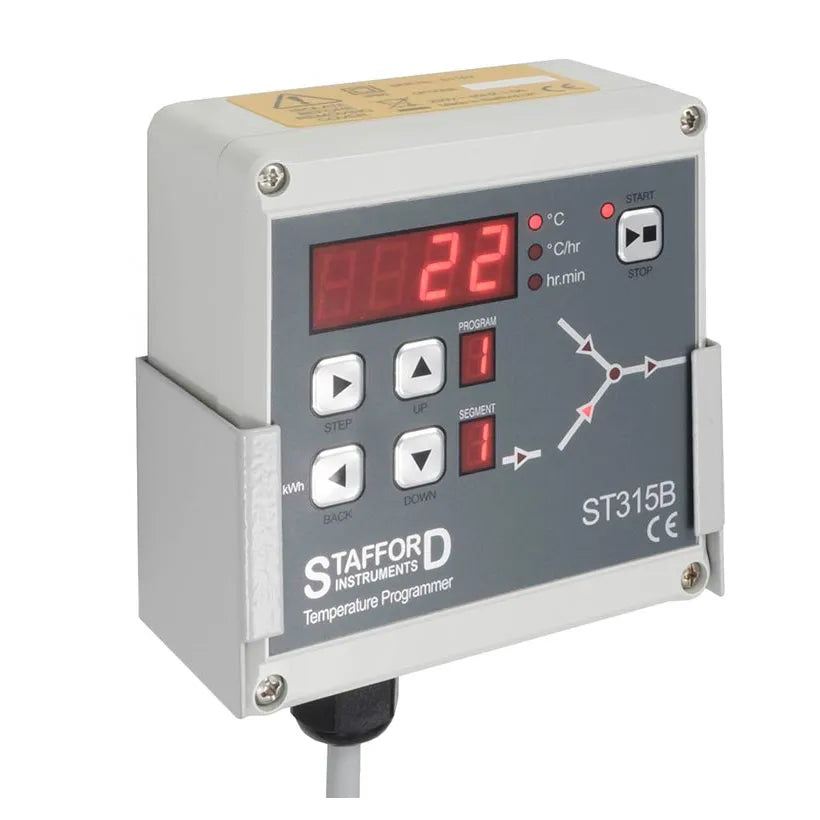

OPTIONAL CONTROLLER ST312B / ST315B

• Front loading for ease of packing
• High thermal efficient construction
• Free standing stove with Green U/C enamel paint finish
• High grade spiral wound elements fitted to sidewall and base
• Efficient low thermal mass brickwork
• Uk compliant electro mechanical door interlock safety system
• Over temperature kiln lining protection
• Ventilation cooling port
• Instrument socket to accept all controllers in our range
• Kiln is set up with a R type Thermocouple – Controllers must match this setting.
• PLEASE NOTE – Optional Kiln Furniture Set & Controller (these are not included in kiln price – please see the selection options)

Photographs are for illustrative purposes only and may not be entirely exact to the product listed but close.
